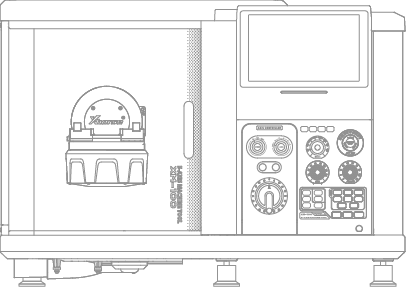

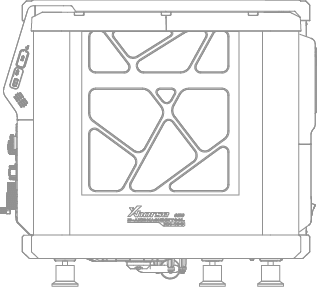

580mm
797mm
614mm
Numerical Control System
XMachine-NCS
Lathe Structure
Horizontal
X/Y/Z Axis Travel
156mm/203mm/125mm
A-Axis Travel
-30~110°
C-Axis Travel
360°
X/Y/Z Axis Max. Rapid Rate
≥4000mm/min
A/C Axis Max. Rotation Rate
A: 15r/min; C: 15r/min
Spindle Speed
18000rpm
Spindle Config
EtherCat
Tool Changer Capacity
6 Tools
Rotary Table
Direct Drive Motor
Worktable Size
100mm
Worktable Load
≤10Kg
Max. Workpiece Size
100×100×100mm
Rated Power
2.2Kw
Coolant System
Air Cooling
Machine Weight
Around 130kg
Machine Dimensions
797×614×580mm
